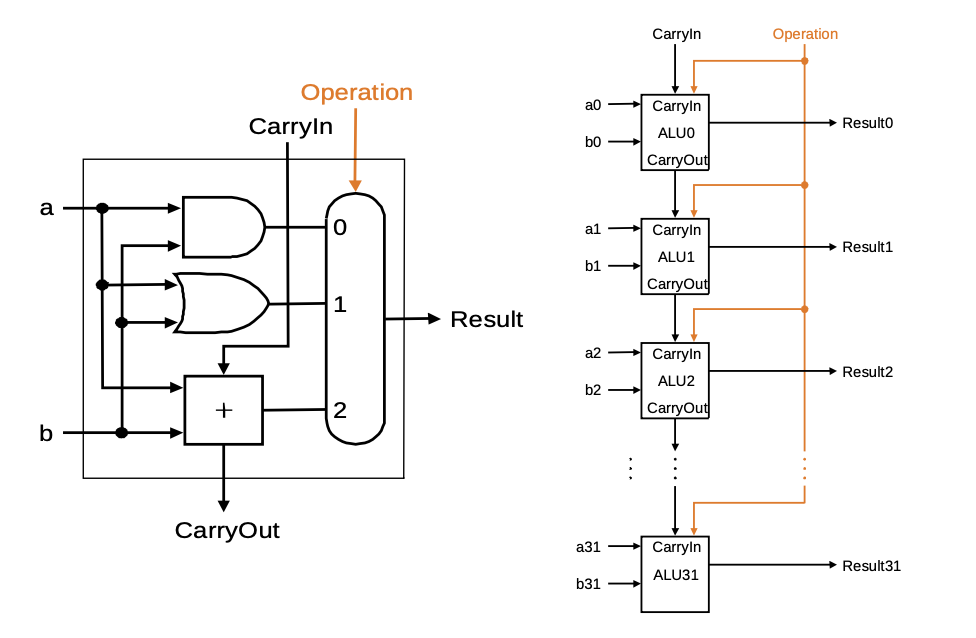

Handles AND, OR, and binary addition.
The two Operation
control bits determine which result is
passed through the MUX (AND, OR, or sum).
(How does a MUX work?)
Handles binary subtraction by
negating b
and doing addition. (Flip all the bits and set
CarryIn0 to 1 to compute two's complement.)
The Binvert
control bit determines whether
b
or not b
is passed to the adder.
The two Operation
control bits determine which result is
passed through the second MUX (AND, OR, or sum).
Stop and Think: Why is theBinvert
control line 1 bit, while theOperation
control line is 2 bits?
